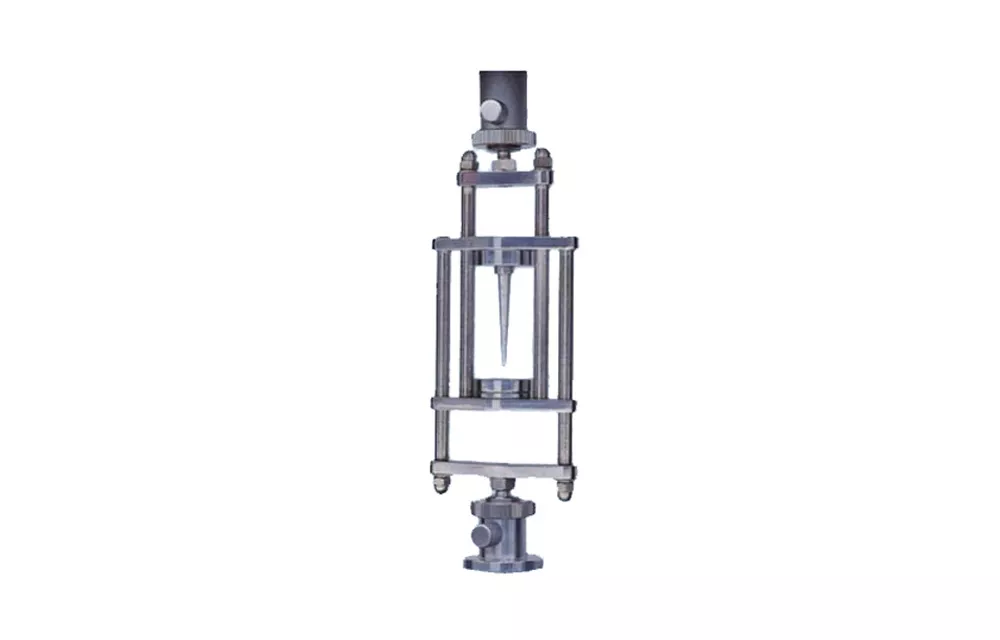

Shoe Eyelet Impact Fixture (FB-1)
Overview：
- The FB-1 fixture is specifically designed for impact testing of shoe eyelets attached to a variety of materials.
-
Manually operated
This manually operated fixture provides secure and reliable specimen clamping with easy adjustment.
Structure
Features anti-rust treatment and high durability. Supports the measurement of the force required to separate shoe eyelets from attached materials.
Application
Ideal for securely holding different types of shoe eyelets attached to various materials.
-
左右滑動看表格Standard conformance SATRA PM150 Capacity 100kg Scope of application All types of shoe eyelets attached to a variety of materials Gripping method Manual Diameter of eyelet 12.00mm Test speed 100±10mm/min Dimensions (W×D×H)mm 120×50×330
＊Product design and specifications are subject to change without notice.
-
Features
Manually operated
This manually operated fixture provides secure and reliable specimen clamping with easy adjustment.
Structure
Features anti-rust treatment and high durability. Supports the measurement of the force required to separate shoe eyelets from attached materials.
Application
Ideal for securely holding different types of shoe eyelets attached to various materials.
-
Specifications 左右滑動看表格
Standard conformance SATRA PM150 Capacity 100kg Scope of application All types of shoe eyelets attached to a variety of materials Gripping method Manual Diameter of eyelet 12.00mm Test speed 100±10mm/min Dimensions (W×D×H)mm 120×50×330
＊Product design and specifications are subject to change without notice.
型號
FB-1
符合標準
SATRA PM150
容量
100kg
應用範圍
被粘附至任意材料的所有種類的鞋帶孔
夾持方式
手動夾持
鞋眼直徑
12.00mm
測試速度
100±10mm/min
體積 (W×D×H)mm
120×50×330
