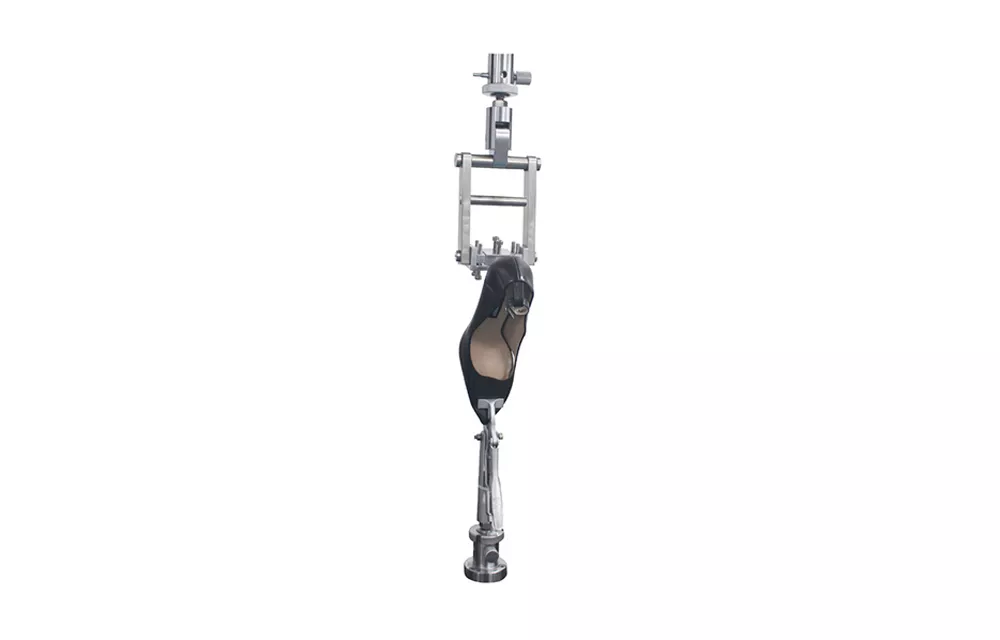

Women's Heel Pull-Out Fixture (FC-3C)
Overview：
- The FC-3C is specifically designed to securely hold the slim heel of ladies' shoes for heel pull-out testing.
-
Manually operated
This manually operated fixture provides secure and reliable specimen clamping with easy adjustment.
Structure
Securely holding the heels using threaded bolts. Designed to pair with the FA-1 pliers grip.
Application
This fixture is used for gripping various slim heels in heel pull-out testing.
-
左右滑動看表格Standard conformance GB/T 3903.25 or ISO 22650 Capacity 200 kg Dimensions (approx.) (W×D×H) Upper fixture: 120mm×60mm×300mm Lower fixture FA-1 pliers grip Scope of application Slim high and mid heels Gripping method Manual Compatible tester Dual column tensile tester
＊Product design and specifications are subject to change without notice.
-
Features
Manually operated
This manually operated fixture provides secure and reliable specimen clamping with easy adjustment.
Structure
Securely holding the heels using threaded bolts. Designed to pair with the FA-1 pliers grip.
Application
This fixture is used for gripping various slim heels in heel pull-out testing.
-
Specifications 左右滑動看表格
Standard conformance GB/T 3903.25 or ISO 22650 Capacity 200 kg Dimensions (approx.) (W×D×H) Upper fixture: 120mm×60mm×300mm Lower fixture FA-1 pliers grip Scope of application Slim high and mid heels Gripping method Manual Compatible tester Dual column tensile tester
＊Product design and specifications are subject to change without notice.
型號
FC-3C
符合規範
GB/T 3903.25、ISO 22650
容量
200 kg
應用範圍
適用於較細的中高跟鞋
夾持方式
手動夾持
下夾具
FA-1萬能鉗
體積(約)(W×D×H)
上夾具120mm×60mm×300mm
適用儀器
雙柱式拉力試驗機
