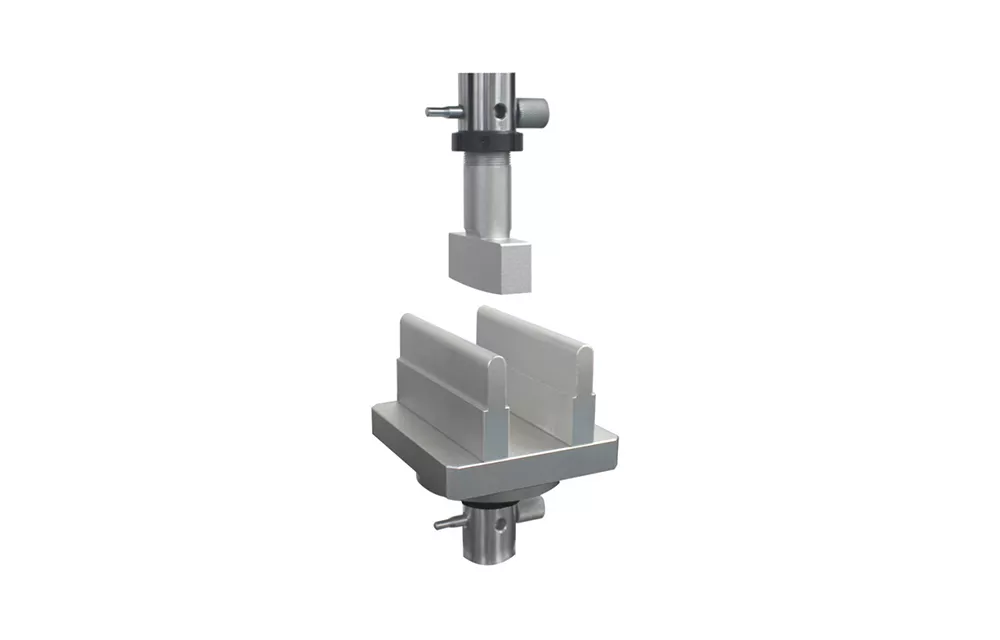

Shank Bending Fixture (FC-9-10)
Overview：
- The FC-9-10 fixture is specifically designed to assess the bending resistance of shank.
-
Manually operated
This bending fixture is manually operated to securely support specimens for testing.
Structure
Features a 3-point bending configuration and fixed supports. Customized components are available to fit different specimens sizes.
Application
Ideal for testing the resistance of shank to bending.
-
左右滑動看表格Capacity 100 kg Upper fixture (hammer) 80mm×20mm×30mm, R401 Lower fixture Two support pillars: Semi-sphere in Ф12mm on the top with height of 60mm
Distance between the two semi-spheres: 60mmDimensions (approx.) (W×D×H) Upper fixture: 50mm×80mm×110mm
Lower fixture: 120mm×140mm×140mmGripping method Manual Compatible tester Single and dual column tensile testers
＊Product design and specifications are subject to change without notice.
-
Features
Manually operated
This bending fixture is manually operated to securely support specimens for testing.
Structure
Features a 3-point bending configuration and fixed supports. Customized components are available to fit different specimens sizes.
Application
Ideal for testing the resistance of shank to bending.
-
Specifications 左右滑動看表格
Capacity 100 kg Upper fixture (hammer) 80mm×20mm×30mm, R401 Lower fixture Two support pillars: Semi-sphere in Ф12mm on the top with height of 60mm
Distance between the two semi-spheres: 60mmDimensions (approx.) (W×D×H) Upper fixture: 50mm×80mm×110mm
Lower fixture: 120mm×140mm×140mmGripping method Manual Compatible tester Single and dual column tensile testers
＊Product design and specifications are subject to change without notice.
型號
FC-9-10
容量
100 kg
夾持方式
手動夾持
上夾具(沖錘)
80mm×20mm×30mm，弧度 R401
下夾具
兩點支撐柱：頂部半圓Ф12mm，高度60mm;
兩頂部半圓的中心距離60mm;
體積(約)(W×D×H)
上夾具50mm×80mm×110mm下夾具120mm×140mm×140mm
適用儀器
單柱式、雙柱式拉力試驗機
